Advanced 3D techniques

Tutorial

Advanced

1. Introduction

This chapter is a continuation of the 3D graphics chapter that focuses on more advanced techniques.

2. W vs Z buffering

The DS allows you to pick between Z and W depth buffering. All you need to do is to call glFlush(GL_ZBUFFERING) (the default if you don’t specify anything) or glFlush(GL_WBUFFERING) (not recommended for orthogonal projections).

Z-buffering distributes depth values uniformly between the near plane and the far plane, so it works better when your polygons are distributed uniformly between them. W-buffering is more accurate for polygons close to the near plane, and less accurate for polygons close to the far plane. This may make it more useful for regular 3D scenes. In the DS, depth values go from 0 (near plane) to 0x7FFF (far plane).

The GPU uses fixed point for all its calculations, and it’s easy to see Z-fighting between polygons that don’t have enough space between them. Having a bit more of accuracy can help with this kind of issues. This image shows the same scene with Z-buffering on the left and W-buffering on the right, and it proves how W-buffering is more accurate in this specific case:

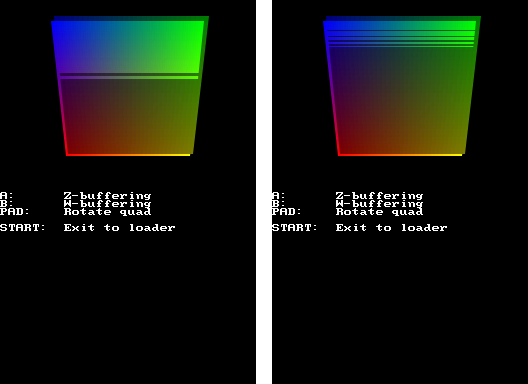

Depth buffering modes

You can test the example yourself here: examples/graphics_3d/depth_buffering_modes

3. Clear bitmap

Normally the background of the 3D scene is a background with a solid color that can be set with glClearColor(). This background has a fixed depth value that can be adjusted by calling glClearDepth():

glClearColor(20, 10, 10, 31); // RGB15(20, 10, 10). Alpha = 31
glClearDepth(0x7FFF);

The GPU also lets you use a bitmap as a clear plane instead of a solid color. The bitmap image is stored in texture slot 2 (normally VRAM C) and the depth map is stored in texture slot 3 (normally VRAM D).

// Set banks to LCD mode so that the CPU can access them
vramSetBankC(VRAM_C_LCD);
vramSetBankD(VRAM_D_LCD);

// Load bitmap (16-bit RGBA format)
memcpy(VRAM_C, image, image_size);

// Load depth map
memcpy(VRAM_D, depth_map, depth_map_size);

vramSetBankC(VRAM_C_TEXTURE_SLOT2); // Same as VRAM_C_TEXTURE
vramSetBankD(VRAM_D_TEXTURE_SLOT3); // Same as VRAM_D_TEXTURE

Now you can enable the bitmap with:

glEnable(GL_CLEAR_BMP);

After that, the clear color and depth specified by glClearColor() and glClearDepth() will be ignored.

Now you need to be careful so that libnds doesn’t load textures to VRAM C or D and overwrites your data. For that, you need to lock them. Normally, libnds allocates textures to any VRAM bank used for textures. We need to lock banks C and D so that libnds knows textures can’t be loaded to them:

glLockVRAMBank(VRAM_C);
glLockVRAMBank(VRAM_D);

You can see this in action in the following example: examples/graphics_3d/clear_plane_bitmap

It setups the depth map as a pattern of squares that have the depth of the near plane or the far plane:

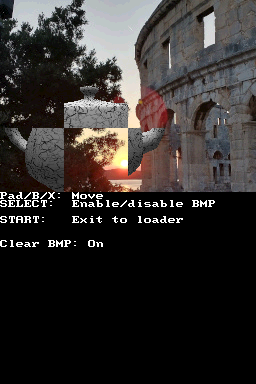

Clear plane bitmap

In practice, the clear bitmap isn’t very useful:

The image is a 16-bit bitmap, which is very big, and not very flexible. You can use polygons to display 2D elements in your 3D scene very easily. You can use any texture format with your polygons, so you can use paletted formats, which take less space than 16-bit images.
If you want a 2D background you can just use the 2D hardware and display it behind the 3D scene. This gives you a lot more flexibility in the format of your data, and you can use VRAM banks other than A, B, C or D.
The depth map is very hard to get right. Depth values depend on your perspective (depth values depend on the depth of your near and far planes) and whether you use Z-buffering or W-buffering. You will need to create your depth map by trial and error.

4. Billboards

Billboards are 2D objects that are displayed in a 3D scene, but always facing the camera.

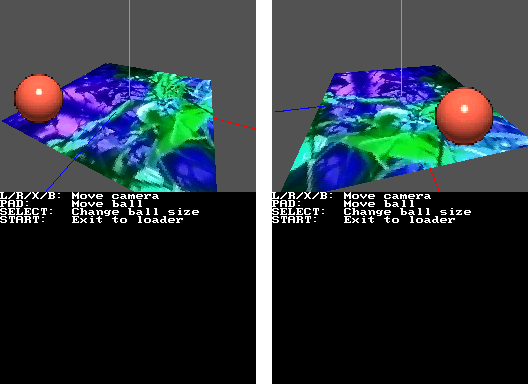

Billboards

This can be done for different reasons:

You want to display a 2D status bar on top of a character or enemy.
You want to draw shapes that are hard to draw in 3D, like a sphere, but you don’t want to use many polygons to do it. In this case, a 2D quad with a texture that displays a circle could be convincing enough for your players.

Displaying polygons that always face the camera requires you to know the direction the camera is facing right now. We can do that by getting the vector matrix. This is a 3x3 matrix that is transformed the same way as the position and projection matrix, but with unit vectors.

From that matrix we can extract the three vectors that face up, right and front from the perspective of the camera, and create a matrix that is the inverse of it. The vector matrix has unit vectors, so we can invert it by transposing it:

int matrix[9];
glGetFixed(GL_GET_MATRIX_VECTOR, matrix);

int32_t right[3] = { matrix[0], matrix[3], matrix[6] };
int32_t up[3] =    { matrix[1], matrix[4], matrix[7] };
int32_t front[3] = { matrix[2], matrix[5], matrix[8] };

// Create the inverse matrix of the vector matrix
const m3x3 to_billboard_space = {{
     right[0],  right[1],  right[2],
        up[0],     up[1],     up[2],
    -front[0], -front[1], -front[2],
}};

When we multiply the current modelview matrix by to_billboard_space we will switch from using the 3D world axes to using axes aligned to the screen. For example, if you’re drawing a quad that represents a ball:

glPushMatrix();

    // Move to the position of the ball first
    glTranslate3f32(ball.x, ball.y, ball.z);

    // Rotate the world so that the axes are in billboard space
    glMultMatrix3x3(&to_billboard_space);

    // Now we can scale the billboard if we want
    glScalef32(inttof32(ball.scale), inttof32(ball.scale), inttof32(1));

    glBegin(GL_QUADS);

        glTexCoord2t16(inttot16(32), 0);
        glVertex3v16(floattov16(-0.5), floattov16(1), 0);

        glTexCoord2t16(0, 0);
        glVertex3v16(floattov16(0.5), floattov16(1), 0);

        glTexCoord2t16(0, inttot16(32));
        glVertex3v16(floattov16(0.5), 0, 0);

        glTexCoord2t16(inttot16(32), inttot16(32));
        glVertex3v16(floattov16(-0.5), 0, 0);

    glEnd();

glPopMatrix(1);

You can check the example here: examples/graphics_3d/billboards

5. Knowing if a 3D object is touched

Knowing what 3D object is under a point of the screen can be useful. For example, if you’re pressing the touch screen, you may want to know which object is being touched.

You can design your game in a way that makes it easier to convert from 2D coordinates to the 3D world, but that doesn’t work for all types of games. It may be enough if you’re creating something like a board game, or a strategy game, but it won’t be enough if you’re moving around a 3D world with objects that have arbitrary shapes.

Picking

The strategy is to draw the screen twice:

Set the viewport outside of the screen. Setup a “pick matrix” centered around the 2D position you want to test. This matrix will allow the GPU to render only what’s inside a small square that you can define.

Draw your 3D scene as normal, but keep track of the value of GFX_POLYGON_RAM_USAGE every time you draw an object (remember to do while (GFX_BUSY); before reading the polygon count). If the number of polygons drawn has increased, that object is inside the pick window.
```
// Set the viewport to just off-screen, this hides all rendering.
glViewport(0, 192, 0, 192);

// Normal viewport
int viewport[] = { 0, 0, 255, 191 };

// Setup the projection matrix for picking
glMatrixMode(GL_PROJECTION);
glLoadIdentity();
// Render only what is below the cursor in a 4x4 pixel window
gluPickMatrix(touchXY.px, 191 - touchXY.py, 4, 4, viewport);
```
Set a normal viewport and draw the 3D scene as normal.
```
glViewport(0, 0, 255, 191);
```

Some things to consider:

The picking scene can be a simplified scene. You don’t need to use textures, you can use simplified models with fewer polygons, you can ignore all objects that you don’t want to interact with.
You can combine this technique with the “position test” described in the 3D graphics chapter. If two objects are inside the pick window, the depth of the objects will let you select the one that is the closest to the camera.
Not all emulators support the GFX_POLYGON_RAM_USAGE register, so this system won’t work in them. melonDS supports it.

You can check the example here: examples/graphics_3d/picking

6. Point light

The GPU of the Nintendo DS only supports directional light:

It behaves like sunlight.
All the rays of light are parallel.
The intensity of the light isn’t affected by the distance to the light source.
The light is defined by its color and direction (it doesn’t have a position).

Using this kind of lights it’s possible to emulate point lights:

It behaves like a lightbulb.
Rays of light emerge from a point in space.
The intensity of the light is affected by the distance to the light source.
The light is defined by its color, position, and a function that defines the attenuation of the light based on the distance.

In a few words: You have to use directional lights, but you adjust their direction and color before drawing each object affected by point lights.

For each light (up to 4):

Calculate the difference between the coordinates of the object and the coordinates of the light: light_to_obj[] = object_position[] - light_position[]
Calculate the length of this vector: distance = length(light_to_obj[])
Turn this vector into a unit vector: light_to_obj[] = light_to_obj[] / distance
Calculate the light intensity. For example, for each of the R, G and B components, you can do: R_obj = R_light / (attenuation * distance ^ 2)
Setup the light by calling glLight() with light_to_obj[] as direction and (R_obj, G_obj, B_obj) as color.

This is a pretty convincing effect in most cases. However, it becomes less convincing when the light source is very close to the object it illuminates.

You can check the source code of the example here: examples/graphics_3d/point_light

7. Volumetric shadow

Volumetric shadows allow you to display scenes in which parts of a model are shadowed while others are displayed normally. For example, the following image shows the 3D scene on the left, and it highlights the shadow volume in wireframe on the right:

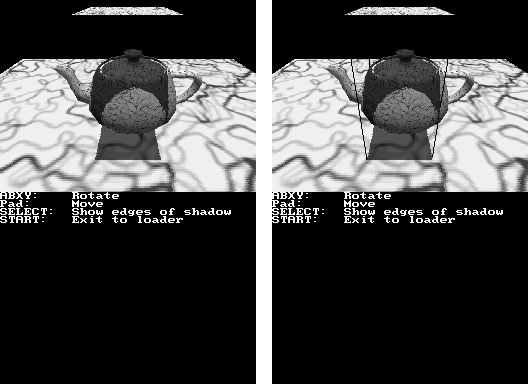

Volumetric shadow

You can also use this to cause a flashlight effect if the shadow volume is brighter than the rest of the scene.

The steps to use this effect are:

Enable blending and manual sorting of translucent polygons.
```
glEnable(GL_BLEND);
glFlush(GL_TRANS_MANUALSORT);
```
Draw your scene as usual sorting your translucent polygons manually.
Draw shadow volume to set the stencil buffer mask. Use shadow polygon mode, polygon ID 0, and alpha between 1 and 30. This won’t draw the shadow, but it will prepare the buffer to draw it in the next step.
```
glPolyFmt(POLY_ALPHA(1) | POLY_ID(0) |  POLY_CULL_NONE | POLY_SHADOW);
DrawShadowVolume();
```
Draw shadow volume to render it. Use shadow polygon mode as well, but this time use the alpha value you want for your shadow, and a polygon ID that isn’t 0. If you’re using fog, enable it here as well (or not, if you want a flashlight effect with a bright shadow volume).
```
glPolyFmt(POLY_ALPHA(20) | POLY_ID(63) |  POLY_CULL_NONE | POLY_SHADOW);
DrawShadowVolume();
```
Repeat the last two steps for every shadow you want to display on the screen. Don’t try to draw all the masks and volumes at once or shadows won’t shadow each other.
Finish the scene using manual sorting mode for translucent polygons:
```
glFlush(GL_TRANS_MANUALSORT);
```

You can check the code of the example here: examples/graphics_3d/volumetric_shadow

You can check GBATEK to get more information, and you can check the Volumetric Shadow Demo by silent_code to see a more complex example that uses this technique.

8. Efficient animated models

In the 3D graphics chapter we saw how to use display lists to render static 3D models in an efficient way. This system can also be used to display animated models, but it requires more work.

Skeletal animation is a common way to animate 3D models. With this technique, each vertex is associated to one or multiple bones. Each bone represents a transformation (a reorientation plus a translationa). When a bone is moved, all vertices associated to the bone are moved with it. Each bone can have a different weight with a vertex. This value normally goes from 0.0 to 1.0, and it represents how much a vertex is affected by the movement of a bone.

The transformations can be done by hand, but there’s a way to optimize it in the DS so that all transformations are done by the GPU.

As we’ve seen before, each bone represents a transformation (a reorientation plus a translationa), which can be expressed as a 4x3 transformation matrix (a 3x3 matrix for the reorientation, and a 1x3 vector for the translation).

Vertices associated to a bone aren’t stored with their global coordinates, but with their coordinates relative to the origin of the bone. That way you can load the matrix of a bone to the GPU, send the vertices of that bone, and they will be moved to the right position.

If you can express all the bones of your model as 4x3 matrices, load them to the GPU, and switch between them while drawing your model, you have an easy way to draw animated models.

There are two limitations for this system:

You can’t use more than 30 bones because the GPU doesn’t have space for more matrices.
All vertices need to be associated to just one bone with a weight of 1.0. If you wanted to support different combinations of weights you could also do it, but it would increase the CPU usage significantly. You’d need to calculculate each combination of weights and have a different matrix for each combination.

The system works like this:

Create a 3D model with your favourite 3D editor (like Blender). Animate it with a skeleton as usual.
Export the model in such a way that you create a display list and animation data:
- The animation data must include the orientation and translation of each bone for each frame.
- The display list is just a regular display list that uses MATRIX_RESTORE commands to switch between matrices. Each vertex is associated to one bone, so you must switch to that transformation before sending that vertex to the GPU. Note that you can change the active matrix while in the middle of drawing a polygon, vertices in a polygon don’t need to use the same matrix.
To render the model:
- Load the animation data for the frame you want to draw, convert it to 4x3 matrices, and load them to the GPU. You need to multiply them by the current world transformation to be able to move your animated model like any other of your models.
- Send the display list to the GPU.

BlocksDS doesn’t come with an example of how to do this, but there’s a library that uses this technique: DSMA library.

This library expects the user to export their models in MD5 format and convert them with md5_to_dsma. The converter generates one DSM (DS Model) file and as many DSA (DS Animation) files as animations you have for the model.
The animation data is stored as a quaternion (orientation) and a translation per bone. The format is described here. This system takes up less space than a matrix (7 values vs 4x3 values), and it’s easier to interpolate between frames. Matrices can’t be linearly interpolated, but quaternions and translation vectors can.
The quaternions and vectors are converted to 4x3 matrices before displaying the models. Check the code here.

The following video shows the stress test example displaying lots animated models with around 50% CPU usage. Each model has to prepare and load its own transformation matrices before drawing the model itself.
