Audio

The DS has 16 sound channels that are mixed by hardware, so you can play up to 16 simultaneous sounds without having to dedicate any CPU time. The playback frequency, volume and panning can be changed for each channel independently. This is a pretty flexible system that can be used to play music and sound effects simultaneously while dedicating most of the CPU time to the game logic instead of mixing sounds.

Something important to consider is that the ARM9 doesn’t have access to the sound hardware, only the ARM7 does. Normally you don’t need to worry about it because libnds provides some helpers that can communicate with the default ARM7 executable to tell it to play sounds. The functions are designed to provide a simple interface to play sound effects, but it isn’t very useful if you want to play music. For that, you need to use other libraries.

BlocksDS comes Maxmod and LibXM7, two libraries that can play music on the DS.

• Maxmod: It’s a library that supports playing music in formats MOD, XM, S3M and IT, and sound effects in WAV format. In fact, if you use Maxmod, you generally don’t need to use the helpers of libnds to play sound effects. You can use Maxmod to play music and audio effects. It requires all audio files to be converted and packaged as a “sound bank” before being played.

• LibXM7: This library only supports playing MOD and XM files, and it doesn’t have support to play sound effects. However, it doesn’t require converting songs to any format before playing them, which can be useful in some situations.

Most of the time you’ll be using Maxmod for everything, but you can definitely replace it by using LibXM7 for music and libnds for sound effects.

This is the most common option. Maxmod is a pretty flexible library that lets you combine the hardware-mixed sound channels and software-mixed channels in case you require more than 16 simultaneous sounds. This library is used by default in BlocksDS projects, so you don’t need to do anything special to use it in your projects.

There are a few examples of Maxmod in the BlocksDS repository. This section is based on the following example: examples/maxmod/basic_sounds

To use this library you just have to add your music files to a folder (for example, “audio”) and add the folder to AUDIODIRS in the Makefile. The build system will look for MOD, XM, S3M, IT and WAV files in this folder and create a soundbank with it. You will need to include the soundbank and its definitions in your application:

#include <maxmod9.h>        // Maxmod header for the ARM9
#include <nds.h>

#include "soundbank.h"      // Header with IDs of songs and sound effects
#include "soundbank_bin.h"  // Pointer to the soundbank itself

In the example there are three files in the “audio” folder: fire_explosion.wav, lasse_haen_pyykit.xm and parallax_80599.xm. This means that soundbank.h will contain three definitions based on their file names. For example:

#define MOD_PARALLAX_80599    0
#define MOD_LASSE_HAEN_PYYKIT 1
#define SFX_FIRE_EXPLOSION    20

To use your songs and sound effects, first you need to initialize audio with soundEnable(), which is found in libnds (you can also disable it with soundDisable(), but this isn’t normally required).

You can initialize Maxmod with:

mmInitDefaultMem((mm_addr)soundbank_bin);

After the library is initialized you need to load specific songs and sound effects before you can use them. For example:

mmLoad(MOD_PARALLAX_80599);
mmLoad(MOD_LASSE_HAEN_PYYKIT);

mmLoadEffect(SFX_FIRE_EXPLOSION);

Now, you can play songs with mmStart(MOD_LASSE_HAEN_PYYKIT, MM_PLAY_LOOP), for example, and you can stop them with mmStop().

You can play sound effects with mmEffect(SFX_FIRE_EXPLOSION), for example. That function returns a mm_sfxhand value that can be passed to other functions to modify the effect (like mmEffectVolume() and mmEffectPanning()) and to mmEffectCancel() to stop it before it finishes.

If you want to play sound effects in a loop you will need to save your WAV file with looping information. This isn’t a very well-known feature of WAV files, but they can be saved with embedded loop data (RIFF chunk type smpl), which contains the starting point and end of the part that loops.

It is possible to store the sound bank (with your sound effects and music) in the filesystem. This is required if your game grows too much and it can’t fit in RAM. This system will be explained later in the tutorial.

Check the documentation of Maxmod and the examples for more information.

LibXM7 is less powerful than Maxmod (it can only play XM and MOD files, and no sound effects), but it has a very big advantage over Maxmod: it can play unmodified XM and MOD files. However, this function is more manual than Maxmod, and you need to be more careful with it. If Maxmod does everything you need, it’s probably better to stick to it.

There are a few examples of LibXM7 in the BlocksDS repository. This section is based on the following example: examples/libxm7/basic_sound

The first thing to consider is that the default ARM7 core used by BlocksDS is built with Maxmod, not with LibXM7. If you want to use LibXM7 you will need to edit your Makefile and set the value of ARM7ELF to, for example, this:

ARM7ELF     := $(BLOCKSDS)/sys/arm7/main_core/arm7_dswifi_libxm7.elf

You will also need to link the right library on the ARM9 side:

LIBS        := -lnds9 -lxm79
LIBDIRS     := $(BLOCKSDS)/libs/libxm7 \
               $(BLOCKSDS)/libs/libnds

In order to include your XM and MOD files to your game, you’ll need to rename them to have the .bin extension and add them to the data folder so that the Makefile detects them. This isn’t ideal, and you’ll learn in a future chapter how to load the files from the filesystem so that you don’t need to worry about this.

Make sure your Makefile has a line like this one:

BINDIRS     := data

Then, if you have a file called parallax_80599.xm, you need to rename it to parallax_80599_xm.bin and copy it to the data folder in your project directory. When the program is built, file parallax_80599_xm_bin.h will be generated, and you can include it to your project.

First, include the library header and your songs:

#include <libxm7.h>
#include <nds.h>

#include <parallax_80599_xm_bin.h>

Now, write two functions to communicate with the LibXM7 ARM7 core of BlocksDS. Note that LibXM7 doesn’t provide any helper to communicate with the ARM7, you must implement them yourself:

// Assign FIFO_USER_07 channel to LibXM7. This channel is the one used by the
// ARM7 core of libnds.
#define FIFO_LIBXM7 FIFO_USER_07

void song_start(XM7_ModuleManager_Type *module)
{
    fifoSendValue32(FIFO_LIBXM7, (u32)module);
}

void song_stop(void)
{
    fifoSendValue32(FIFO_LIBXM7, 0);
}

And now you can actually use the library:

// You can also allocate this with malloc()
static XM7_ModuleManager_Type module;

int main(int argc, char **argv)
{
    consoleDemoInit();

    // Load XM file and initialize the XM7_ModuleManager_Type struct
    u16 res = XM7_LoadXM(&module, lasse_haen_pyykit_xm_bin);
    if (res != 0)
    {
        printf("LibXM7 error: 0x%04x\n", res);
        while (1)
            swiWaitForVBlank();
    }

    // Depending on the MOD or XM file you're playing, you may need to adjust
    // the replay style. Check the documentation for more details.
    //XM7_SetReplayStyle(&modules[0], XM7_REPLAY_STYLE_MOD_PLAYER);

    // Ensure that the ARM7 can see the LibXM7 initialized data
    DC_FlushAll();

    // Enable sound on the ARM7
    soundEnable();

    while (1)
    {
        swiWaitForVBlank();

        scanKeys();
        uint16_t keys_down = keysDown();

        if (keys_down & KEY_B)
            song_stop();
        if (keys_down & KEY_X)
            song_start(&module);

        if (keys_down & KEY_START)
            break;
    }

    XM7_UnloadXM(&module);

    soundDisable();

    return 0;
}

Note that LibXM7 doesn’t initialize the audio hardware automatically (same as Maxmod), so you need to call soundEnable() at some point.

The workflow is similar to Maxmod: You load songs with XM7_LoadXM() or XM7_LoadMOD() (depending on your format), you clean the data cache of the ARM9 by calling DC_FlushAll() (so that the ARM7 can see the updated data in RAM), and you’re ready to call song_start().

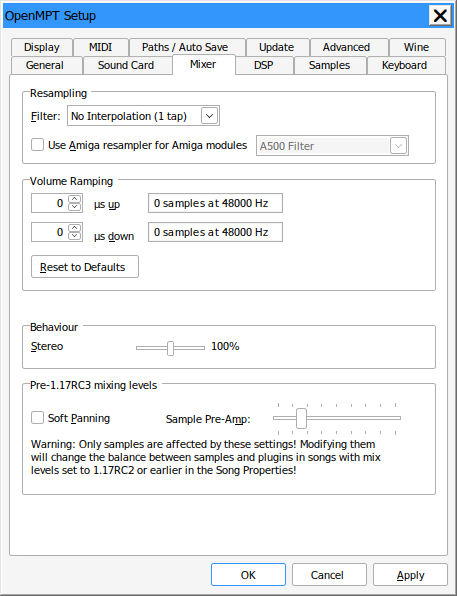

Be careful with some songs, particularly in MOD format. You will need to call this function to set the right compatibility settings to play the song:

XM7_SetReplayStyle(&module, XM7_REPLAY_STYLE_MOD_PLAYER);

LibXM7 uses as many hardware channels as required by the song. They are allocated starting from channel 15, then 14, etc. This means that if you have a song with 8 channels you will have hardware channels 0 to 7 available to use. You will learn how to use them to play sound effects in the next section of this chapter.

Check the documentation of LibXM7 and the examples for more information.

The sound helpers of libnds allow you to use all of the features provided by the hardware channels of the DS. All channels (0 to 15) support playing PCM formats (regular waveforms, like WAV files). In addition, channels 8 to 13 support playing PSG (programmable sound generator) rectangular waves of any frequency, and channels 14 and 15 can play white noise of any frequency. In most cases, PSG and white noise is never used because PCM is simply more flexible and convenient from a development perspective:

• Playing rectangular waves or white noise uses a sound channel, just as playing a PCM sound.

• For the person creating the audio of a game it’s far easier to save audio as a PCM file than to edit code or configuration files trying to define which frequency to use, etc.

• PCM files can play any kind of sound, not just rectangular waves or white noise. It’s easier to make games sound well with PCM files.

The main disadvantage of PCM sound effects is that they need more ROM space. However, this is generally fine because NDS ROMs can be very big (the biggest official game cartridges are 512 MB).

Now, let’s see how to play sounds of all types. Check the following example: examples/audio/play_sounds

The audio sample in this example has been created with Audacity. You can open any sound effect with it and export it as “Uncompressed” format, without header, with signed 16-bit values. You can also choose to export it with unsigned 8-bit values. Any program that can export to this format will work. sox is a command line tool that can also be used to convert audio files to this format.

Copy all your audio files to the “data” folder in your project and add it to BINDIRS in your Makefile. You can have as many folders as you want in BINDIRS, so you can have a folder called “sfx” instead, for example. The main thing to remember is to rename the files to have the “.bin” extension.

In the code of your application, the first thing you need to do is to initialize sound with soundEnable(). Then you can start playing sounds. There are two options:

• You can let libnds look for any unused sound channel and play the sound there. For that, you can use soundPlaySample(), soundPlayPSG() and soundPlayNoise(). The functions return the channel that libnds has picked for the sound effect in case you want to change its volume, frequency, panning, or stop it. They return -1 if they can’t find any free channel.

• You can select the channel you want to use. For that, use soundPlaySampleChannel(), soundPlayPSGChannel() and soundPlayNoiseChannel(). The functions expect you to pass a valid channel to be used for that sound effect, and they replace whatever sound was being played in that channel. This can be useful if you’re using LibXM7 for music and you need to hardcode channel numbers for sound effects.

This is how you can use the functions:

#include <nds.h>

// This file is generated from "nature_raw.bin"
#include "nature_raw_bin.h"

int main(int argc, char **argv)
{
    // Make sure that the sound engine on the ARM7 is initialized
    soundEnable();

    // Variable to hold the channel being used by the PCM sound
    int ch_wav = -1;

    // In the case of the PSG and noise, we're going to hardcode the channel number
    const int ch_psg = 12;
    const int ch_noise = 14;

    while (1)
    {
        swiWaitForVBlank();

        scanKeys();

        uint16_t keys_down = keysDown();

        if (keys_down & KEY_Y)
        {
            // If the sample sound is active, stop it first
            if (ch_wav != -1)
                soundKill(ch_wav);

            ch_wav = soundPlaySample(nature_raw_bin, // Pointer to sample
                        SoundFormat_16Bit,           // Format: Signed 16 bits
                        nature_raw_bin_size,         // Size in bytes of the sample
                        11025, // Frequency in Hz
                        127,   // Volume: Max
                        64,    // Panning: Center
                        false, // Disable looping
                        0);    // Loop start point (not used here)
        }

        if (keys_down & KEY_A)
        {
            // Play a rectangular wave with 50% duty cycle (50% on and 50% off).
            // Replace the previous sound.
            soundPlayPSGChannel(
                    ch_psg              // Channel to use
                    DutyCycle_50,       // Duty cycle
                    440 + rand() % 256, // Random freq between 440 and 696 Hz
                    127,                // Volume: Max
                    64);                // Panning: Center
        }

        if (keys_down & KEY_X)
        {
            // Play noise in a specific channel. Rplace the previous sound.
            soundPlayNoiseChannel(
                    ch_noise,           // Channel to use
                    700 + rand() % 256, // Random freq between 700 and 956 Hz
                    127,                // Volume: Max
                    64);                // Panning: Center
        }

        if (keys_down & KEY_B)
        {
            // Stop any sound that is active

            if (ch_wav != -1)
                soundKill(ch_wav);
            ch_wav = -1;

            soundKill(ch_psg);
            soundKill(ch_noise);
        }

        if (keys_down & KEY_START)
            break;
    }

    // Disable sound when we're leaving the application
    soundDisable();

    return 0;
}

You can use functions like soundSetVolume(), soundSetFreq() or soundSetPan() to adjust a sound currently being played, or soundPause() and soundResume() to pause and unpause a sound.
